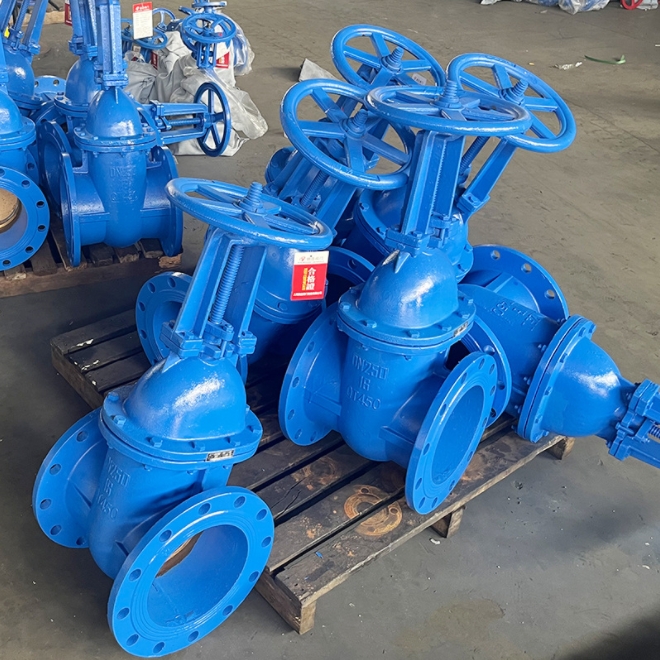

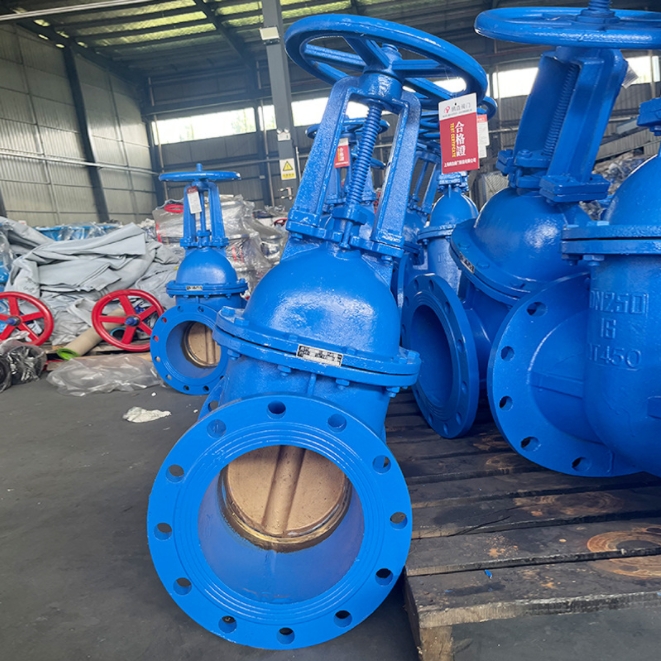

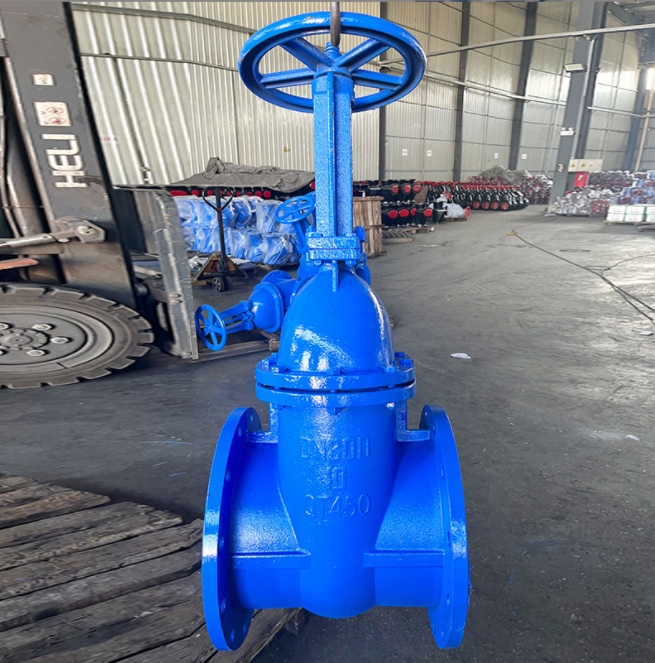

Prosper Flow can manufacture resilient seated gate valve according to the standard of DIN3202 F4/F5/BS5163 with sizes of 2"-16"(DN50~400mm).

1. FEATURES

· Full bore design

· Self cleaning & low pressure loss

· Rolled stem ensure smooth thread edges and double thread

· Low operating torque

· Good and clear body marking (Castings are from the same foundry with AVK Valve  and Spain TALIS)

· Online replaceable under full pressure with valve fully opened; Three o-rings protects upper stem from impurities entering from the water way

· Every valve be 100% tested and qualified before packing and delivery

2. STANDARD

· Design & manufacturing: EN1171/1074/DIN3202-F4/ F5/BS5163

· Face to face: EN558-1 series 3,14,15

· Flanged ends: ISO7005-2, EN1092-2, DIN2501 PN10/PN16

· Inspection & testing: EN12266-1

3. TECHNICAL SPECIFICATION

· Working pressure: PN10 / PN16 Bar

· Size: 2"-16"(DN50~400mm)

· Materials: cast iron, ductile iron

· Epoxy resin thickness: ≥250micron

· Applicable temperature: 0℃~+80℃

· Available with handwheel/square cap/gearbox/ electric actuator

4. APPLICATION

· Water supply system

· Waste water, sludge, sewage treatment industry

· Irrigation system

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Textile, pharmaceutical industry

· Food, pharmaceutical industry
